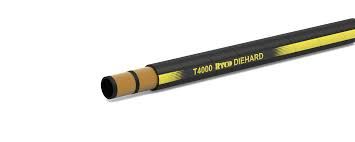

Hydraulic Hose 3/4 In ID 4100 PSI Wp

Hydraulic Hose; Applicable Standard Sae J1942, Iso 11237; Inside Diameter 3/4 Inch; Outside Diameter 1.1 Inch; Minimum Bend Radius 4.75 Inch; Core Material Synthetic Rubber; Cover Material Abrasion Resistant Synthetic Rubber; Reinforcement Single/double Braid Steel Wire; Pressure Rating 3000 Psi; Temperature Rating -40 To 257 Deg F; Application Agriculture, Forestry, Ground/building Maintenance, Material Handling, Military, Personnel Equipment, Transportation, Utility Equipment

Wire braid reinforced synthetic rubber hose for use in hydraulic systems. Designed, built and tested to the ISO 18752 specification

Hydraulic Hose; Applicable Standard Iso 1436-1 Type 2sn/sae 100r2 Type At, J1942/en 853 Type 2sn/uscg Hf/dnv/abs/bv; Inside Diameter 3/4 Inch; Outside Diameter 1.16 Inch; Minimum Bend Radius 9.5 Inch; Core Material Synthetic Rubber; Cover Material Synthetic Rubber; Reinforcement Double Braided Steel Wire; Pressure Rating 3100 Psi; Temperature Rating -40 To 212 Deg F; Application Agriculture, Construction, Forestry, Ground And Building Maintenance, Machine Tool, Material Handling, Railroad, Transportation, Utility Equipment
