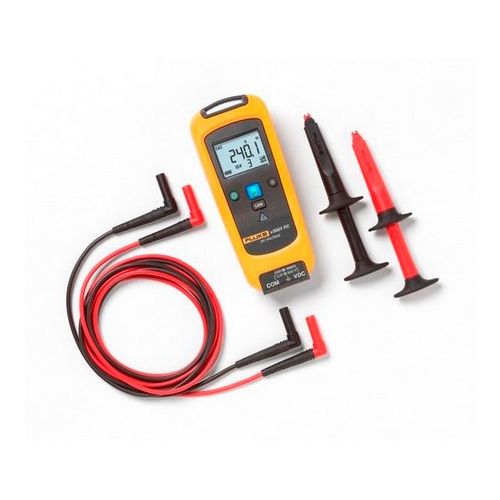

Fluke Wireless Dc Voltage Module Fc
The Fluke 3000 Fc Wireless Test Tools Are A Team And The Modules Are Team Players. You Connect Any Of The Fluke Connect Modules To Your Test Point And Then View The Results On Specific Fluke Connect Enabled Hardware Or Through Windows Software On Your Pc up To 20 Meters (65.6 Feet) Away. Save Time And Conduct More Tests With Less Trips. Fluke V3001 Fc Wireless Dc Voltage Module. A Fully Functional Dc Voltage Meter That Wirelessly Relays Dc Voltage Measurements To Other Fluke Connect Enabled Master Units, Listed Below: Fluke 3000 Fc Dmm Fluke Ti200/300/400 Infrared Camera Pc Via Optional Pc3000 Fc Adapter Fluke Connect Mobile App
Brand
Fluke
Mfr. Part#
FLK-V3001FC
Customer Part#
Campbell Part#
FLUFLK-V3001FC
| Accuracy | AC Voltage: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V = Accuracy 1.0 % + 3 (45 Hz to 500 Hz), 2.0 % + 3 (500 Hz to 1 kHz); DC Voltage: 600.0 mV, 6.000 V, 60.00 V, 600.0 V = Accuracy 0.09 % + 2, 1000 V = Accuracy 0.15 % + 2 |
|---|---|
| Amperage Rating | 400 |
| Application | True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems |
| Capacitance | 9999 |
| Frequency Rating | 99.99 |
| Model | FLK-3000 FC |
| Resistance | 50 |
| Special Features | Communicate with your iOS (4s and later) and Android? (4.3 and up) devices with the new Fluke Connect mobile application; Wireless technology allows connectivity between your phone, PC, and all Fluke Connect enabled test tools; Let your team see what you see in an instant with ShareLive? video call; Save money and time by taking multiple measurements simultaneously; Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules; View results on your computer with the PC adapter; Work with fewer interruptions by recording multiple sessions before downloading. Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience; Capture readings at different intervals, with user-set recording intervals from one second to one hour; Future proof your investment by adding functionality to the 3000 FC DMM when you need it; Send and communicate test data to your manager and coworkers to assess abnormal system response in seconds; Have all asset test results at your fingertips after downloading to your PC for future asset performance tracking and reliability programs; See multiple measurements on one screen at one time (DMM and three modules, ti200/300/400 and five modules); No more writing data down. Capture up to 65000 sets of MIN/MAX/AVG readings over single or multiple logging sessions using the recording capability. Each reading and session is time stamped; Avoid awkward or uncomfortable measurement positions. Set up the measurement once, step back and read it as many times as you want, when you want; View up to 6 live readings at once on the Fluke Connect mobile application or a PC to get a complete understanding of the situation; Easily see backlit displays in dark or dimly lit work environments; Choose auto or manual ranging; Use the optional TPAK magnetic hanger for even more hands-free working; Integrated holster protects the meters, while probe holders keep accessories organized; Be in multiple places at once, reducing the risk of arc flash by separating yourself from hazardous measurement situations; Fluke 3000 FC meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards:AC Current Clamp module and AC/DC Current Clamp module 600 V CAT III; AC Voltage Module, DC Voltage Module, and iFlex Clamp Meters 600 V CAT IV/1000 CAT III |
| Standard | Electromagnetic compatibility EMI, RFI, EMC, RF---EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489; V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249; FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE; Safety compliance---ANSI/ISA 61010-1 / (82.02.01): 3rd edition; CAN/CSA-C22.2 No 61010-1-12: 3rd edition; UL 61010-1: 3rd edition; IEC/EN 61010-1:2010; Certifications---CSA, FCC, CE; Ingress Protection (IP) rating IP54; Pollution Degree 2 |
| Voltage Rating | 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V |
Specification Sheet
